10G BiDi 60km T1330/R1270nm

Product Overview

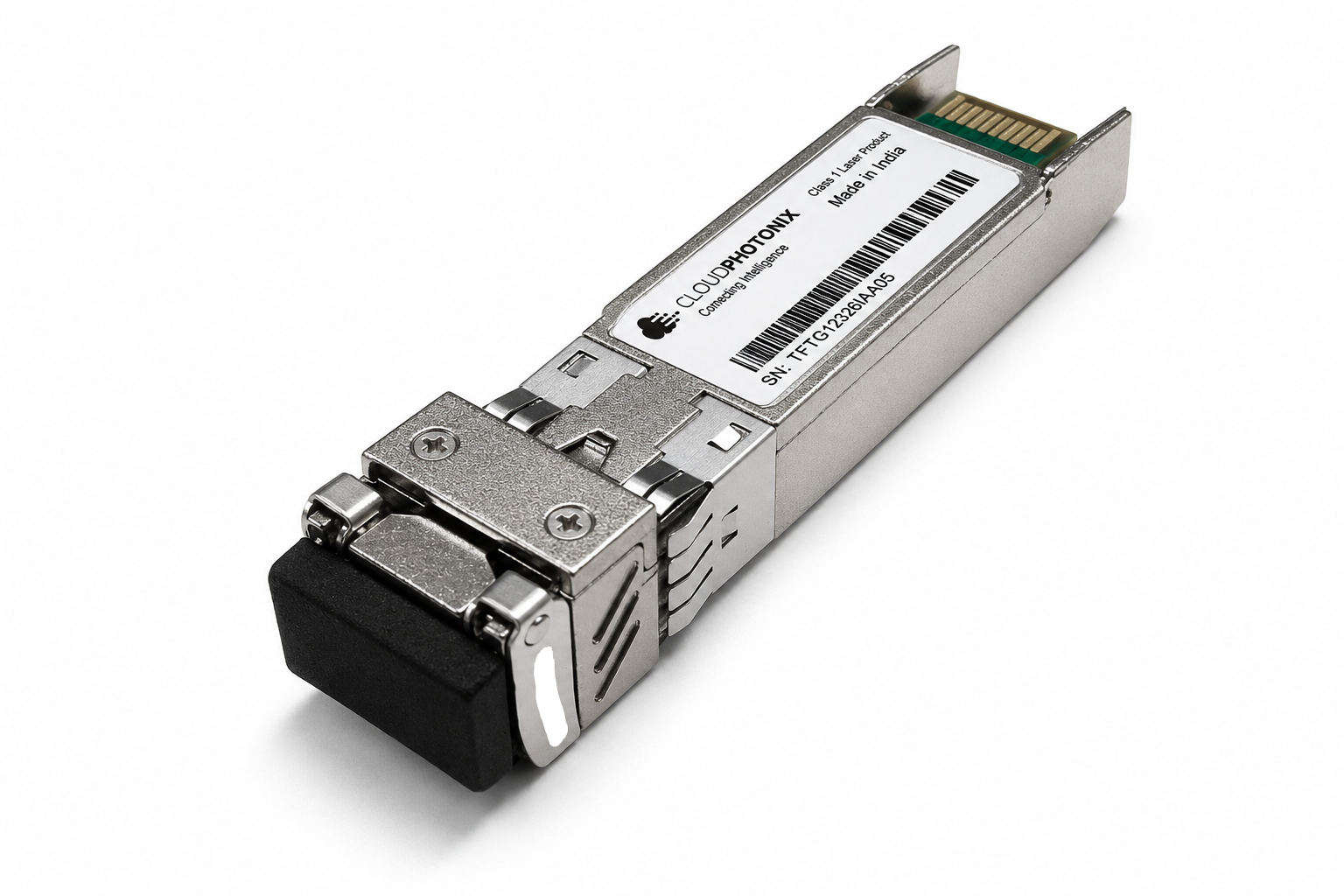

The CB-10E-60-CD2302 and CB-10E-60-CD3202 are long-reach, single-fiber bidirectional SFP+ transceivers designed for 10 Gigabit Ethernet (10GbE) and 10G Fiber Channel (10G FC) applications. They operate over single-mode fiber using complementary wavelength pairs, one variant transmitting at 1270nm and receiving at 1330nm, and the other transmitting at 1330nm and receiving at 1270nm, enabling full-duplex operation on a single optical fiber. Both modules support transmission distances up to 60km and data rates ranging from 10.3Gbps to 10.7Gbps. They are compliant with the SFP+ MSA and the SFF-8472 DDM standard.

Interested?

Connect With  Our Specialists for  More Details

[general_specifications]

Feature Highlights

10G BiDi SFP+ transceivers with single LC connector

1330nm TX / 1270nm RX wavelength configuration

Supports 10.3Gbps to 10.7Gbps data rates

Up to 60km transmission distance over single-mode fiber

APD receiver for enhanced sensitivity

Temp operating conditions: Commercial (0°C to +70°C)
