1G BiDi 20km T1550/R1310nm

Product Overview

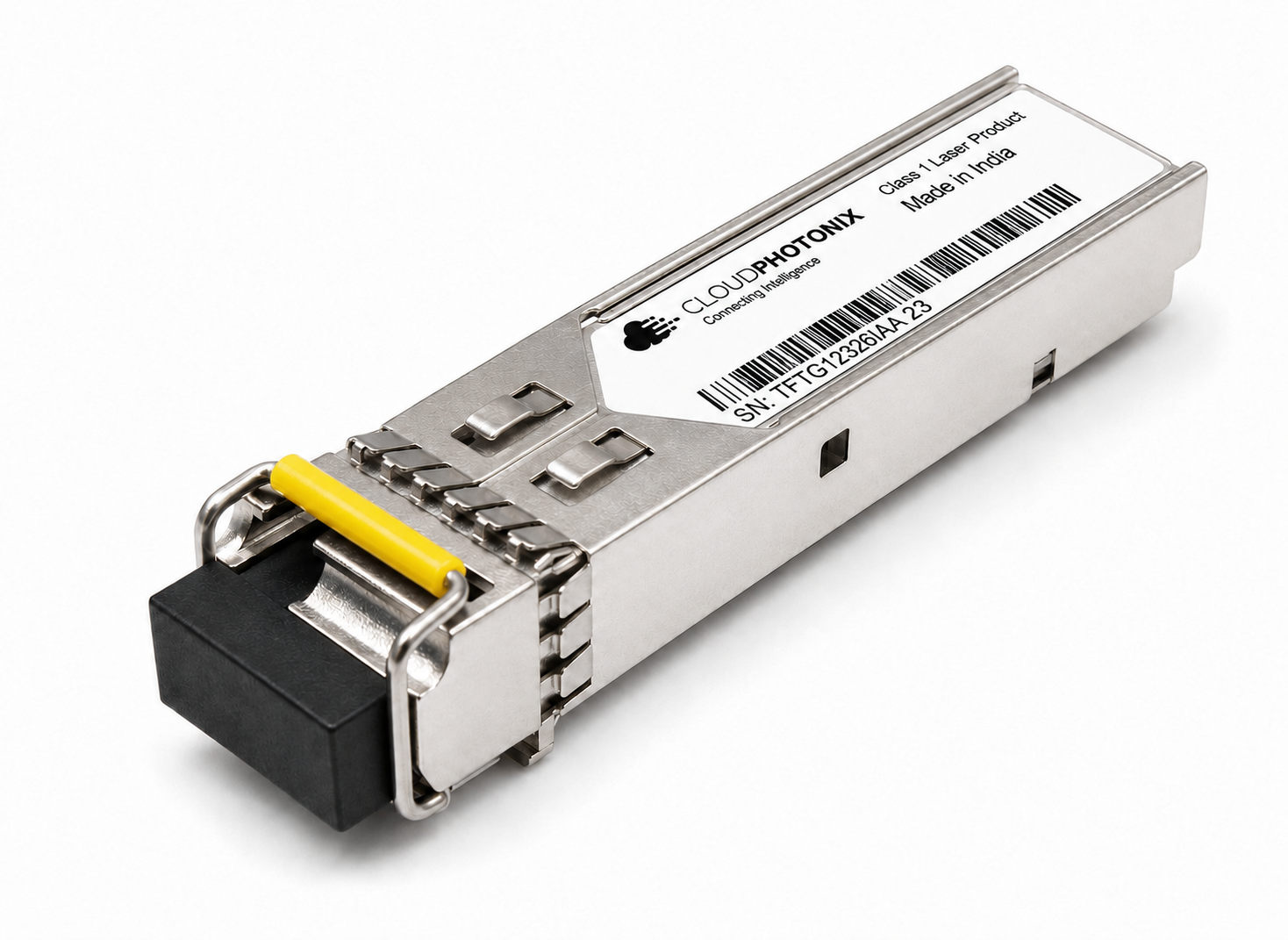

The CB-GB-20-CD3502 and CB-GB-20-CD5302 are single fiber bidirectional SFP transceivers designed for 1.25Gbps Gigabit Ethernet and 1.063Gbps Fiber Channel applications. These modules transmit and receive on complementary wavelength pairs which enables full duplex communication over a single strand of single mode fiber. One variant transmits at 1550nm and receives at 1310nm, and the other transmits at 1310nm and receives at 1550nm. Both versions support up to 20km optical reach. Each transceiver integrates a DFB or FP laser transmitter depending on the wavelength version and a PIN photodiode receiver with TIA.

Interested?

Connect With  Our Specialists for  More Details

[general_specifications]

Feature Highlights

1G BiDi SFP transceivers with single LC connector

Two wavelength options: 1550nm transmit and 1310nm receive

Supports 1.25Gbps Ethernet and 1.063Gbps Fiber Channel

Up to 20km transmission distance over single mode fiber

DFB or FP laser transmitter and PIN photodiode receiver with TIA

Temp operating conditions: Commercial 0°C to +70°C
