1G Z2X 160km 1550nm
Category:
Optical Transceivers

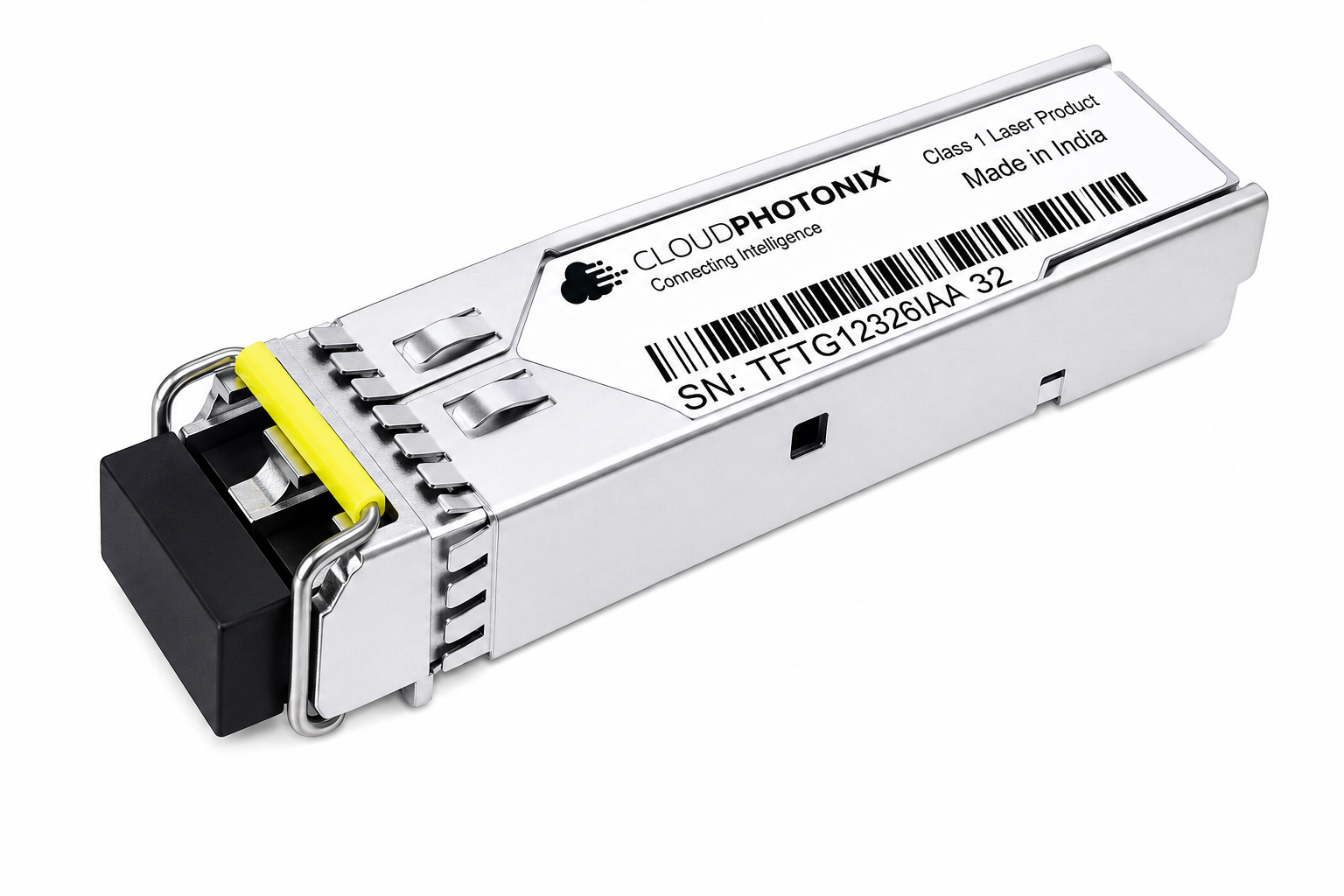

1G SFP, Z2X, 160km, LC, 1550nm, SM, -40 to 85C
SKU:
CP-GB-Z2X-IDF02
Product Overview
The CP-GB-Z2X-IDF02 is an extended reach SFP transceiver designed for Gigabit Ethernet and 1G Fibre Channel applications. It uses a 1550nm DFB laser transmitter with an APD receiver and high sensitivity TIA, supports transmission distances up to 160km over single mode fiber, complies with the SFP MSA and SFF-8472 Digital Diagnostics Monitoring specification, and is available in the Industrial operating temperature range of -40°C to +85°C.
Interested?
Connect With Our Specialists for More Details
[general_specifications]
Feature Highlights
1G SFP transceiver with duplex LC connector
1550nm DFB laser transmitter and APD receiver with TIA
Supports 1.25Gbps Gigabit Ethernet and 1.063Gbps Fiber Channel applications
Up to 160km transmission distance over single mode fiber
Digital Diagnostics Monitoring compliant with SFF-8472
Temp operating conditions: I-temp (-40°C to +85°C)
