25G BiDi 40km T1270/R1310nm
Category:
Optical Transceivers
25G/10G SFP28, BiDi, 40km, LC, 1270/1310nm, SM, 0 to 70C
SKU:
CB-25E-40-CD2312
Product Overview

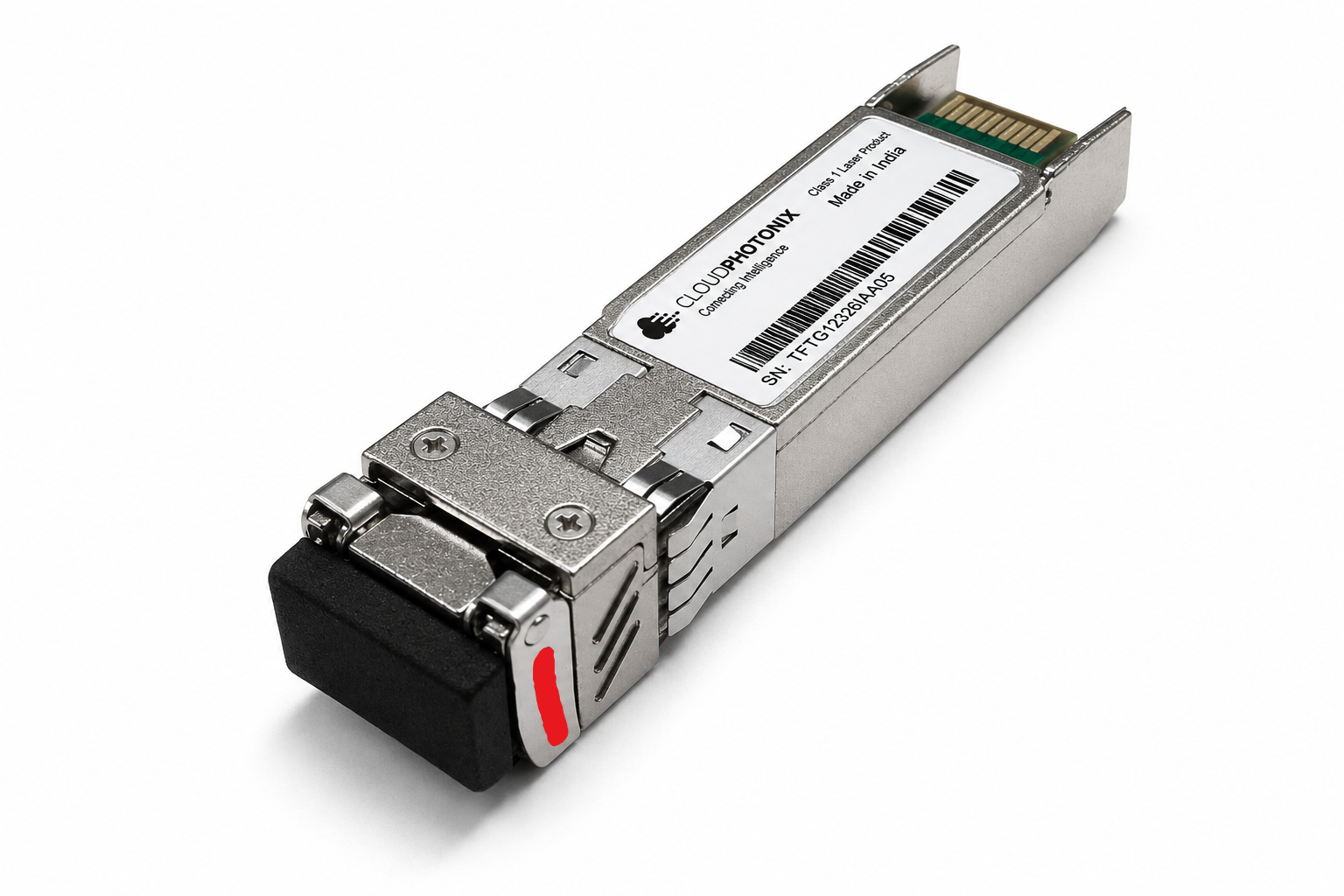

The CB-25E-40-CD2312 is a bidirectional SFP28 transceiver designed for 25/10G Ethernet, eCPRI and CPRI applications. It operates over a single strand of single mode fiber using complementary wavelengths, supports transmission up to 40km, complies with the SFP28 MSA and SFF-8472 Digital Diagnostics Monitoring specification, and is available in the Industrial operating temperature range of 0 to 70C.
Interested?
Connect With Our Specialists for More Details
[general_specifications]
Feature Highlights
25G BiDi SFP28 transceiver with single LC connector
1270nm TX / 1310nm RX
Supports 25/10G Ethernet and CPRI option 10
Up to 40km over single mode fiber
Less than 1.5W power consumption
Temp operating conditions: C-temp (0°C to +70°C)
